OPTIBAR MR 4300

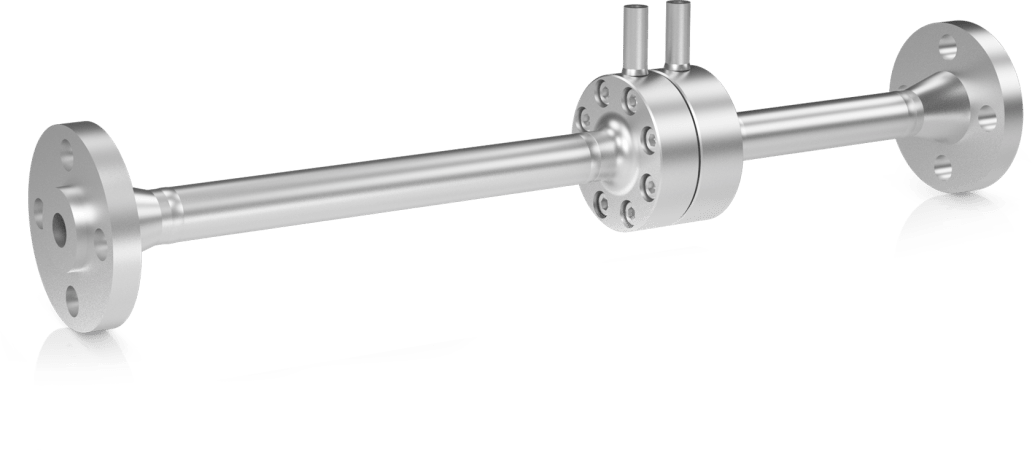

Orifice meter run with corner taps and annular chambers

  • Completely pre-assembled with orifice plate, piping, inlet/outlet sections, process connections
  • Size: DN15…100 / ½…4"; up to PN100 / ASME Cl 1500
  • Temperature: max. +400°C / +752°F
  • Material: 1.4404 / 316L

OPTIBAR MR 4300

Orifice meter run with corner taps and annular chambers

  • Completely pre-assembled with orifice plate, piping, inlet/outlet sections, process connections
  • Size: DN15…100 / ½…4"; up to PN100 / ASME Cl 1500
  • Temperature: max. +400°C / +752°F
  • Material: 1.4404 / 316L

Overview

The OPTIBAR MR 4300 is an orifice meter run. It is ideally suitable for use in small line sizes (

It comes completely pre-assembled and ready for installation, with orifice plate, annular chambers, process connections as well as inlet and outlet sections for low-disturbance flow. The DP flow element is available with the OPTIBAR DP 7060 DP pressure transmitter as well as with manifolds, valves, condensate pots or other accessories.

Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

  • Compact or separate design
  • Upstream and downstream sections acc. to DIN 19214
  • Reduces flow disturbances
  • Minimum measurement uncertainties: ±0.3…0.4% (calibrated)
  • Optional water-calibrated version for increased accuracy (±0.3%)
Related products
Integral orifice meter run assembly
DP flowmeter for process applications with small line sizes (down to DN15 / ½")
  • Standardised calibrated meter run assembly, designed acc. to ISO 5167 or ISO TR 15377
  • Up to +400°C / +752°F; max. 160 bar / 2320 psi (line pressure)
  • Flange: DN15…100 / ½...4"
  • 2-wire, 4…20 mA/HART®, FF, Profibus-PA
OPTIBAR DP 3050
Differential pressure transmitter for general flow, level and differential pressure applications
  • The most compact design in its class
  • Measuring ranges: 100 mbar…16 bar / 1.45…232 psi; Line pressure: up to 160 bar / 2320 psi
  • Reference accuracy ± 0.1%
  • 2-wire, 4…20 mA/HART®7
OPTIBAR DP 7060
Differential pressure transmitter for flow, level, differential pressure, density and interface measurements
  • High performance DP transmitter with integrated line pressure measurement
  • Measuring range: 30 mbar…16bar / 0.44…232 psi; Line pressure: up to 700 bar / 10,153 psi
  • Reference accuracy of ±0.065%
  • 2-wire, 4…20 mA/HART®, FF, Profibus-PA, Bluetooth®
